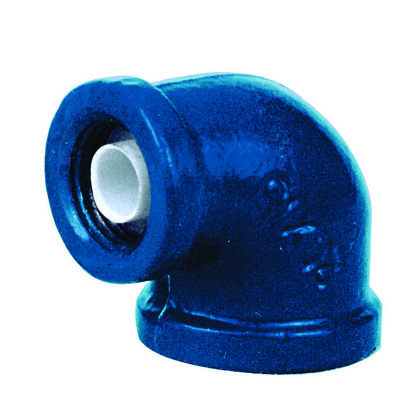

PP-lined Malleable Cast Iron Fittings w/ Outer Epoxy Coating
(Also called Poly Steel Fittings in Malaysia)
They are made of black fittings and lined with PP via injection machine with outside blue color epoxy coating,
used to connect the PE-lined steel pipe with outer PE coating(Poly Steel Pipe) by thread.
The working pressure is up to 1.6Mpa and size available is from 1/2"(15mm) to 4"(100mm).
Specification: BS EN 10241:2000, BS EN10226-1:2004, BS EN10242, BS143&1256
JWWA K116:1987, JPF MP003-2003, JPF MP005-2004, CJ/T137-2008
|
Elbow 45 |
Elbow 90 |
Bush |
|
Plug |
Cap |
Union |
|
Nippple |
Male & Female Joint |
Male & Female Elbow |
|
Tee |
Cross |
Socket |
|
Reducing Tee |
Reducing Socket |
Reducing Elbow |
